Revco™ RDE Series -40°C Ultra-Low Temperature Freezers (Thermo Scientific™)

Key Features

Performance

• Powered by H-drive's hydrocarbon technology, these systems save up to almost 50% in energy usage and heat rejection over conventional refrigerant ultra-low freezers¹
• A quiet sound output below 53 dBA, enables the freezer to come out of the hallway and into the lab
• Meets +/-5°C validation protocols at -40°C with strong peak variation and steady-state temperature variation
• Natural hydrocarbon refrigerants reduce system operating stresses promoting outstanding reliability and worry-free sample protection

User Friendly

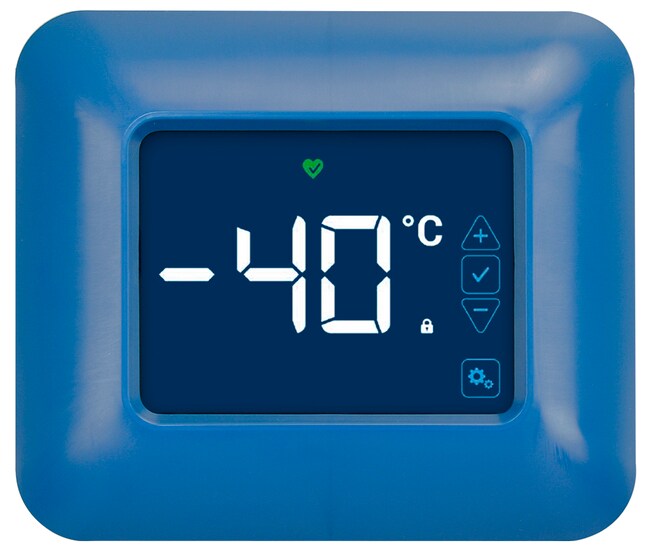

• The H-drive Information Center (HIC) combines easy to read temperature with simple capacitive touch buttons in a 5.6” display
• Three capacities (400, 500 and 600 2-inch box) to accommodate a variety of storage needs and lab footprint specifications
• All models contain four inner doors allowing for easy sample access without exposing greater freezer content to ambient conditions
• Improved customer convenience with new ergonomically designed handle, high contrast eye-level display, and comfortable easy-access shelf locations.
• Compatible with most racking systems including a full range of Thermo Scientific™ racks for boxes, microplates, Thermo Scientific™ Matrix™ and Nunc CryoBank™ tubes
• Security features including alarm settings and padlock-compatible doors

Sustainability

• Manufactured in an award-winning, zero-waste to landfill facility
• Lower HVAC costs as a result of less heat emission into the environment
• Natural refrigerants and water-blown foam insulation, making the Series compliant with the U.S. Environmental Protection Agency’s Significant New Alternatives Policy (SNAP), the European Union’s F-Gas and other sustainability standards

Footnotes:

1. Internal data comparing 4.4kWh/day to Legacy Performance DxF40040 Model with 8.0kWh/day. Data on File.
2. Typical freezer test data based on internal testing in ambient temperature at 20°C; Typical standard validation protocol of +/-5°C.

Order Codes

Code	Description
RDE60040LV	Catalog Number: RDE60040LV Unit Size: Each Electrical Requirements: 230V, 50Hz Certifications/Compliance: CE
RDE40040FA	Catalog Number: RDE40040FA Unit Size: Each Electrical Requirements: 115V, 60Hz Certifications/Compliance: cULus
RDE40040FD	Catalog Number: RDE40040FD Unit Size: Each Electrical Requirements: 208 - 230V, 60Hz Certifications/Compliance: cULus
RDE40040FV	Catalog Number: RDE40040FV Unit Size: Each Electrical Requirements: 230V, 50Hz Certifications/Compliance: CE
RDE50040FA	Catalog Number: RDE50040FA Unit Size: Each Electrical Requirements: 115V, 60Hz Certifications/Compliance: cULus
RDE50040FD	Catalog Number: RDE50040FD Unit Size: Each Electrical Requirements: 208 - 230V, 60Hz Certifications/Compliance: cULus
RDE50040FV	Catalog Number: RDE50040FV Unit Size: Each Electrical Requirements: 230V, 50Hz Certifications/Compliance: CE
RDE60040FA	Catalog Number: RDE60040FA Unit Size: Each Electrical Requirements: 115V, 60Hz Certifications/Compliance: cULus
RDE60040FD	Catalog Number: RDE60040FD Unit Size: Each Electrical Requirements: 208 - 230V, 60Hz Certifications/Compliance: cULus
RDE60040FV	Catalog Number: RDE60040FV Unit Size: Each Electrical Requirements: 230V, 50Hz Certifications/Compliance: CE
RDE40040LA	Catalog Number: RDE40040LA Unit Size: Each Electrical Requirements: 115V, 60Hz Certifications/Compliance: cULus
RDE40040LV	Catalog Number: RDE40040LV Unit Size: Each Electrical Requirements: 230V, 50Hz Certifications/Compliance: CE
RDE50040LA	Catalog Number: RDE50040LA Unit Size: Each Electrical Requirements: 115V, 60Hz Certifications/Compliance: cULus
RDE50040LV	Catalog Number: RDE50040LV Unit Size: Each Electrical Requirements: 230V, 50Hz Certifications/Compliance: CE
RDE60040LA	Catalog Number: RDE60040LA Unit Size: Each Electrical Requirements: 115V, 60Hz Certifications/Compliance: cULus
